The 3D curved glass screen is beautiful, fashionable and delicate. As soon as it is listed, it is favored by the majority of users, which greatly increases the demand of the 3D curved glass market. However, the 3D glass process is very difficult. With the application of new equipment and new technology, many parameters need to be measured. How to solve this problem? In order to meet customer needs and break through testing problems, Guangdong Weimi has launched WEIMI-2TDG 3D glass inspection machine to help customers realize full-size rapid measurement of 3D glass.

The difficulty of 3D glass process is mainly reflected in the four processes of 3D surface forming, surface polishing, surface printing and surface fitting. Each process has strict dimensional measurement requirements, especially the measurement requirements of arc contour.

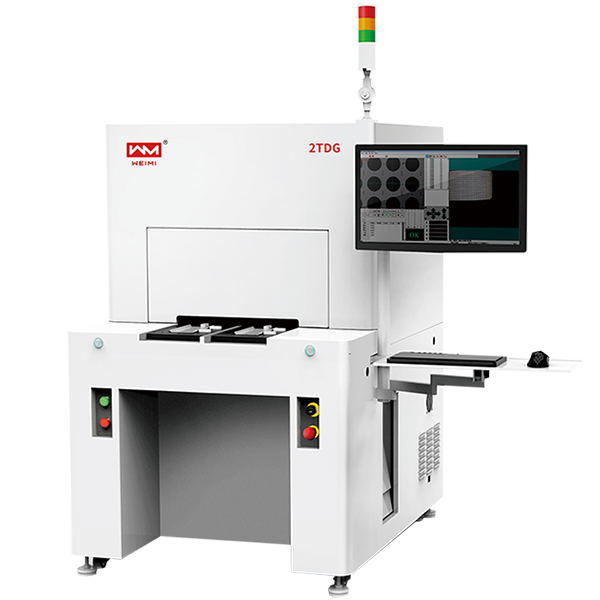

WEIMI-2TDG 3D glass inspection machine can control the width and height of 3D glass at the same time, realize the stable measurement of 2D size (length, width, circular hole diameter, distance, position, etc.), height size (height, thickness, flatness, etc.), contour size (2D and 3D line contour, surface contour, bending angle, etc.), and output inspection data, The product information is clear at a glance and meets the requirements of full inspection of 3D glass.

In terms of instrument configuration and performance, WEIMI-2TDG 3D glass inspection machine adopts Panasonic servo motor and 6-axis control (HIWIN guide rail + TBI screw rod); Equipped with imported grating ruler, the resolution is 0.0005mm, which can meet the requirements of overall dimension accuracy ≤4um and height dimension accuracy ≤5um.

WEIMI-2TDG 3D glass inspection machine adopts double station measurement mode, with overall dimension measurement efficiency of 8s / piece and height measurement efficiency of 14s / piece. It moves back and forth for 2 seconds, and the time to measure the length, width and height of a piece of glass is 24 seconds.

With WEIMI-2TDG 3D glass inspection machine, a precision 3D glass inspection machine, it can realize the full size and rapid detection and measurement of 3D glass and accurately detect the fine structural defects of 3D glass. It can not only realize the rapid and efficient full inspection of products, but also provide data support for the research, development and improvement of 3D glass.
