CNC imager (CNC image measuring instrument) is an artificial intelligence modern optical non-contact measuring instrument with the perfect combination of traditional optical projection and computer. It can measure the contour, size and angle of various complex and precision parts, greatly improve the measurement accuracy and efficiency, and is widely used in all walks of life. In PCB industry, CNC imager is mainly used for image measurement of high-density PCB shape.

CNC imager, or automatic image measuring instrument, is applicable to the field with high standard requirements for two-dimensional dimension measurement. It can measure point, line, circle, arc, angle, diameter, radius, distance from point to line or line to line, eccentricity of two circles, distance between two points, etc.. With the development of science and technology and the improvement of production technology and efficiency, All walks of life have higher and higher requirements for the measurement accuracy and efficiency of parts. Therefore, CNC imagers at the leading level of optical measurement technology are widely used, such as machinery, 3C digital products, auto parts, precision hardware, instruments, PCB, plastics and other industries. today, Let's talk about the application of CNC imager in PCB industry.

CNC imager application industry

PCB detection is more about using CNC imager to detect various two-dimensional dimension data of PCB length, width and height. On the one hand, PCB production tends to be intelligent and refined. It is necessary to detect the product size with high precision and efficiency to ensure product quality and production efficiency; On the other hand, on the basis of strict requirements on the original electrical performance, customers have higher and higher requirements on the appearance of PCB, and their appearance tolerance tends to be harsh. CNC imager can quickly detect the appearance of products in batches and find product defects or defects that are difficult to detect manually, so as to solve a major bottleneck for manufacturers.

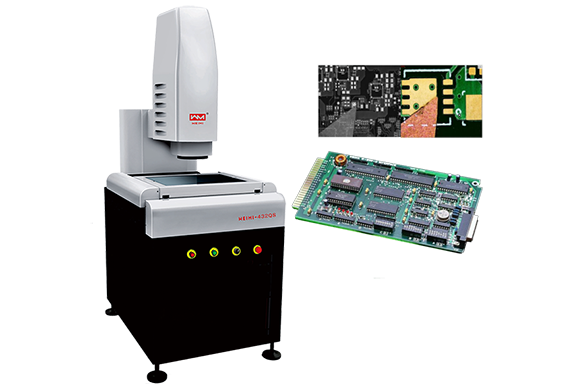

CNC image measuring instrument by Guangdong WEIMI

In addition, CNC imager can also be used for PCB film measurement. Through advanced measurement software and program setting, CNC image measuring instrument can automatically measure the distance between any point of PCB film, obtain the measurement data for analysis, and scientifically obtain the expansion and contraction coefficient of PCB film, so as to better assist PCB production.

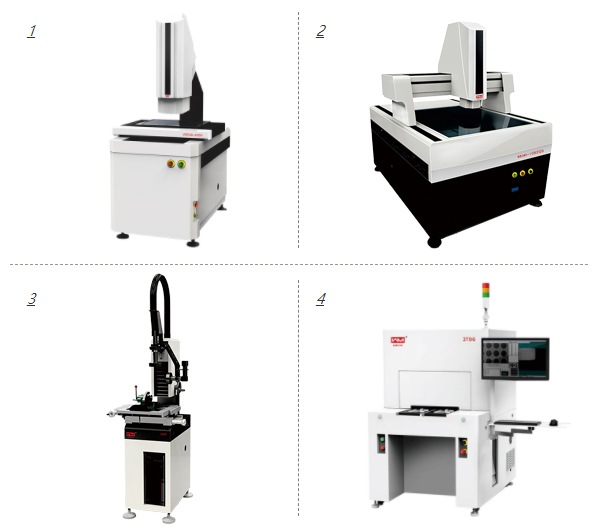

CNC image measuring instrument by Guangdong WEIMI

CNC image measuring instrument not only has the excellent motion accuracy and motion control performance of digital instruments, but also integrates the design spirit of machine vision software. It can realize the functions of CNC scanning batch measurement, automatic learning batch measurement, eagle eye zoom back and automatic focusing auxiliary measurement. It is a cutting-edge optical size detection equipment. In the PCB industry, CNC imager can complete the measurement and detection tasks related to PCB size and appearance with high quality, and control the PCB production process.
