Combined with CNC automatic measurement software, gantry type large stroke secondary image measuring instrument can realize efficient and accurate measurement of large quantities and large-size workpieces, which is suitable for the detection and quality control of precision parts. So, what industries are gantry large stroke quadratic image measuring instrument used in? How about the measurement accuracy? Don't worry, professional imager manufacturer - Guangdong Weimi, here's the answer for you.
Gantry type large stroke quadratic image measuring instrument, or called gantry large stroke quadratic element measuring instrument, gantry large stroke image measuring instrument, etc., can measure length, width, thickness, aperture, two-point spacing, point to line distance, line to line distance, etc. it is widely used in fields requiring large stroke and large-size measurement, such as PCB circuit board, screen board Plastic panels, backlight panels, solar reflective panels, copper clad laminates, flat glass, liquid crystal modules, knife molds, top-grade materials, TFT panels, LTPS, OLED panels, large-size stamping parts, die-cutting products, connectors, TV surface shells and other industries, as well as measurement institutes, research institutes, colleges and universities and other units.
WEIMI1082QS quadratic image measuring instrument
Gantry type large stroke secondary image measuring instrument is widely used in the industry, what is its measurement accuracy?
The gantry large stroke secondary element measuring instrument is a high-precision measuring equipment. Taking Guangdong Weimi weimiqs series automatic gantry large stroke image measuring instrument as an example, the equipment adopts Panasonic full closed-loop servo motor, with adjustable speed and positioning accuracy of 0.001 mm; The high-precision non-contact grating ruler imported from Germany is adopted, with a resolution of 0.0005mm. It has more accurate measurement, more stable use and higher efficiency, which can greatly shorten the measurement time and avoid human errors.
Weimiqs series full-automatic gantry type large stroke image measuring instrument is easy and flexible to operate. It has the functions of automatic focusing, automatic edge finding, automatic detection and data output. The repetition accuracy of the equipment is ≤3μm。

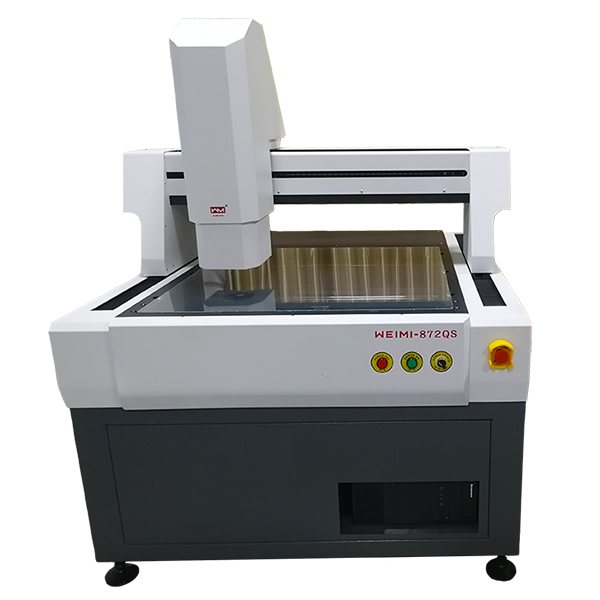

WEIMI872QS quadratic image measuring instrument
In terms of other hardware configuration, weimiqs series gantry type large stroke secondary element adopts high-precision marble base, column, fully automatic zoom lens, Taiwan high-precision linear guide rail and grinding grade ball screw, with good stability and long service life. In addition, the instrument can also be equipped with British Renishaw contact probe and precision point laser / line laser to meet different measurement needs.
Guangdong Weimi also has self-developed measurement software with powerful functions and simple operation to ensure strong compatibility of the produced secondary element measuring instrument, and the software is upgraded and updated free of charge. In addition, Guangdong Weimi can provide free sample testing, one-year warranty, rapid after-sales response and other services. If you happen to be looking for a gantry type large stroke secondary image measuring instrument manufacturer, you might as well learn more about Guangdong Weimi.
