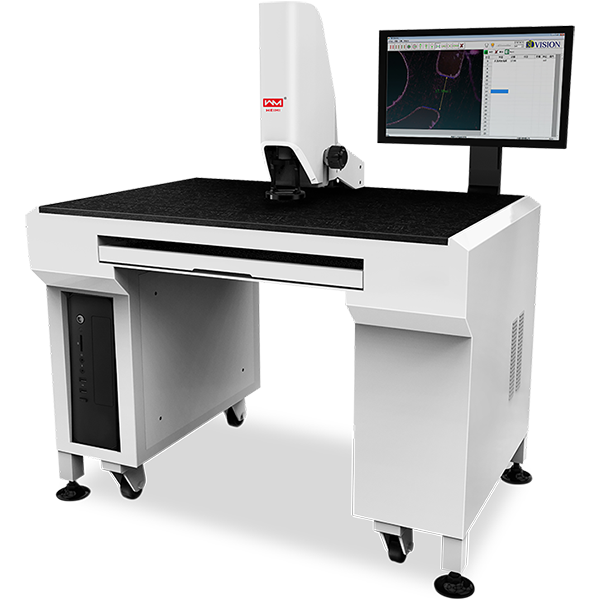

Wei Mi XK25

Equipped with high-precision marble countertops, to ensure high stability and rigidity.
A wide range of measurement functions can quickly and accurately test the PCB line width, line distance.

Instrument Features

■ Equipped with high-precision marble countertops, to ensure high stability and rigidity

■ A wide range of measurement functions can quickly and accurately test the PCB line width, line distance

■ Equipped with imported professional measurement software, test more accurate, more authoritative data

■ Apply to: the inner board, the outer board, blind hole, film

Model Parameters

Model

WEIMITXK25

Dimensions L*W*H(mm)

700*1080*1240

Measuring Range(mm)

X

3.2

Y

2.4

Load Bearing

35kg

Weight(kg)

200

Image Measurement & Measurement system

CCD

Weimi20 1/3 Inch color high resolution camera 520TV line (optional)

Zoom Lens

Card position adjustment method Artistic protection repeatability

Video Zoom

60-450X

Working Distance

900mm

Linear Accuracy(mm)

0.001

Repeat Accuracy(mm)

0.001

Illumination

LED Cold light source

Temperature & Humidity

Temperature Range: 15-30 ° C, Relative Temperature: 20-80% (Non-condensing)

Power Supply

220V±10%(AC) 50HZ

Machine Credit(w)

400
