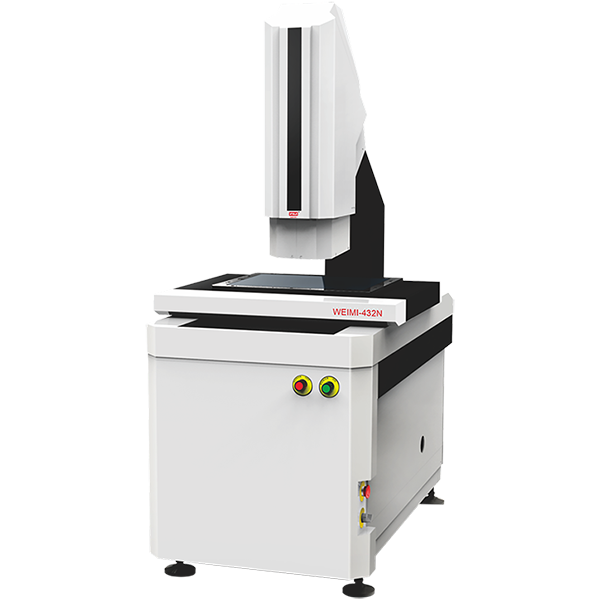

WEIMI432N precision automatic image measuring instrument

Equipped with imported full closed-loop servo motor and heidenham high-precision non-contact grating ruler imported from Germany.

It has high stability, resolution of 0.0005mm and positioning accuracy of 0.001mm.

Instrument Features

Many customers reported that among the full-automatic image measuring instruments at the same price, the full-automatic image measuring instrument with Weimi Measurement has higher accuracy and stronger stability; After comparing the equipment of other companies, many customers come back to buy Weimi Measurement measuring equipment! Here we sincerely thank new and old customers and friends. Your recognition and trust are the biggest driving force for our progress! Weimi Measurement has worked hard in the image measuring instrument industry for many years and developed different series of products to meet the different needs of customers. Next, let's introduce WEIMI432N precision automatic image measuring instrument.

Precision automatic image measuring instrument is inseparable from high-quality materials. WEIMI432N is equipped with imported high-precision linear guide rail and grinding grade ball screw, imported full closed-loop servo motor and heidenham high-precision non-contact grating ruler imported from Germany. It has high stability, resolution of 0.0005mm and positioning accuracy of 0.001mm. In addition, WEIMI432N can also be equipped with British Renishaw contact probe and imported precision point laser / precision line laser to meet the measurement needs of different products.


WEIMI432N adopts weimidd full-automatic zoom lens independently developed by Weimi Measurement. There is no need to take a scale to change the magnification, which saves correction time and avoids human error.

WEIMI432N precision automatic image measuring instrument has simple operation and wide application range. It is suitable for high-precision PCB, LCD, TFT, mobile phone metal middle frame, mobile phone accessories, precision structural parts and other products, and can quickly complete accurate measurement and detection. Welcome friends who are looking for high-end automatic image measuring instrument company to investigate Weimi Measurement and sample measurement for free.

Model Parameters

Model

WEIMI322N

WEIMI432N

Dimensions L*W*Hmm

1160*610*1800

1260*710*1800

Measuring rangemm

X

300

400

Y

200

300

Z

200

200

Workbenchmm

Working desk

680*580

780*680

Glass surface

360*260

460*360

Load bearing

35kg (Customizable)

Total weight (kg)

600

700

Image measurement and CCD

Weimi20 high resolution color CCD

measurement system

Zoom lens

0.7-4.5X

Video zoom

30-225X

Object field of view

10.6-1.6mm

Working distance

90mm

Linear accuracy (μm)

X/Y Accuracy 2.2 + L/200 Z Accuracy 5+ L / 50   ("L" refers to the measured object length in mm)

Repeatability (mm)

0.003

Positioning accuracy (mm)

0.001

Illumination

LED surface light source and lower light   source can change the light according to the program

Temperature & humidity

Temperature range: 15-30 ° C, relative   temperature: 20-80% (non-condensing)

Power supply

220V±10%(AC) 50HZ

achine credit (w)

1100
